Coating & Surface Finishing Equipment
Roller, spray, UV curing and film lamination stations from our Chengdu factory — roller film weight held at 5–10 g/m², working widths to 2200 mm, supplied as one machine or one synchronized line.
Components
Taiwan Shilin inverters, Dutch Anyllong belts, Japanese HSK and HRB bearings — named by brand in every machine standard.
Measured
Roller film weight 5–10 g/m², curtain coating to 35 m/min, 85–92% spray transfer efficiency.
Built to fit
600 to 2200 mm working widths, OEM and ODM, single stations or a full synchronized line.
Industry Solutions
We frame our machines around what you're finishing, not just the spec sheet — glass, wooden doors, panels and exterior cladding all have different coating requirements.
Products
Core machine categories, populated as full specs are confirmed. Working widths and line configurations available on request.

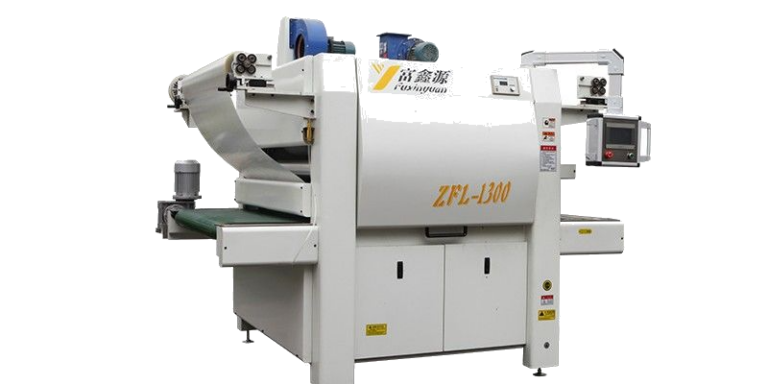

Post-coating composite equipment: film feeding, tension control, cold-press bonding, UV curing and auto film cutting. Laminates PET high-gloss, skin-feel or scratch-resistant film onto UV-topcoated…
View machine →

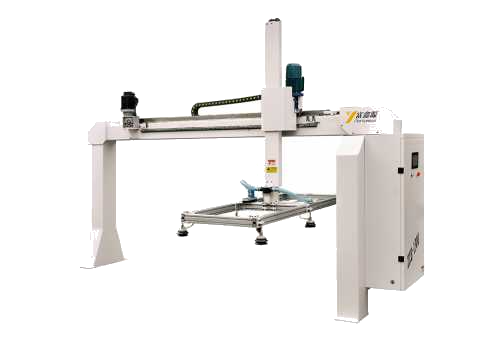

Servo rotating + vacuum suction plate-grabbing for single-sided UV lines, ring-shaped or L-shaped layouts. PLC-connects roller/belt conveyors, roller coaters, sprayers, leveling/drying channels and UV…
View machine →

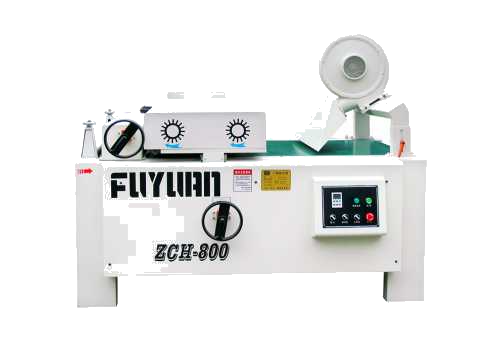

Precision topcoat dust cleaner — removes surface dust before top coating to avoid paint defects and ensure a consistent finish.
View machine →

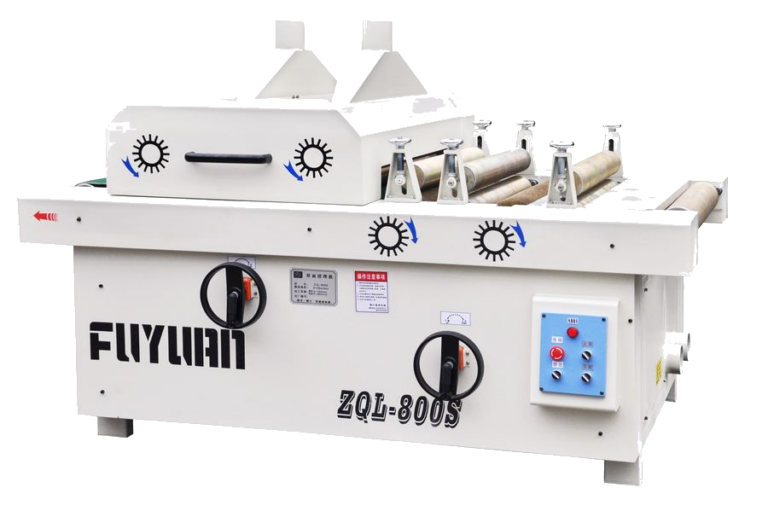

Pre-process equipment after sanding and before primer coating — deep-cleans wood chips and burrs on both sides. Universal standard unit for all basic coating…
View machine →

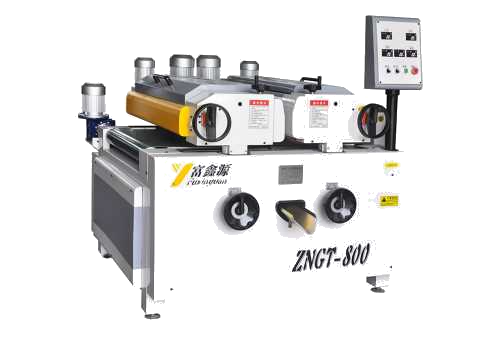

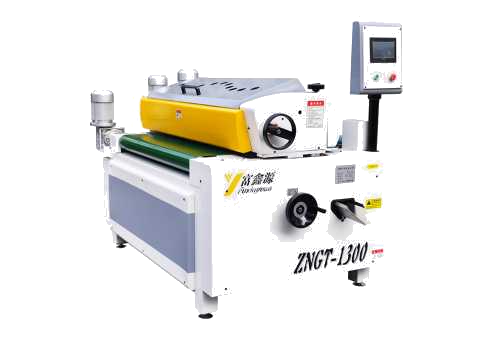

Priming coat for medium and small wooden doors, flooring and PET panels.
View machine →
Complete line for glass, aluminum single panels, insulation boards and large wooden doors.
View machine →

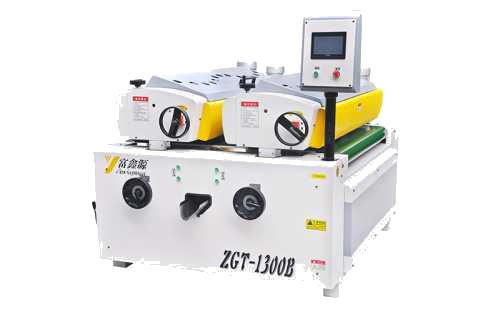

For panels needing strict, uniform coating-thickness control.
View machine →

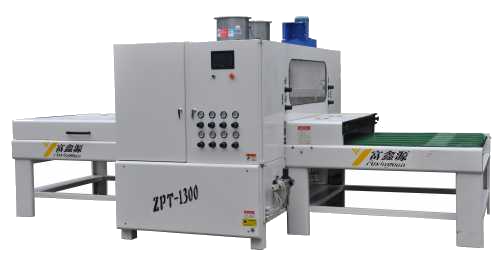

PLC-controlled, 4 spray guns with independent pressure adjustment for uniform, consistent-color coating. Ideal for flexible small-batch wooden doors, flooring and cabinet panels.
View machine →

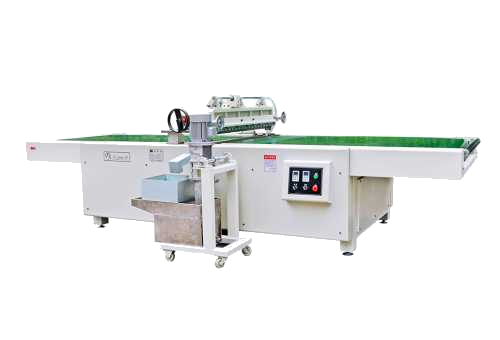

Uniform coating on glass, wooden doors and shaped workpieces.
View machine →

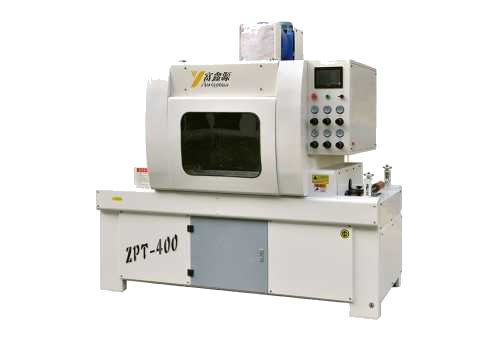

60–70kV electrostatic + high-speed centrifugal atomization. 85–92% transfer efficiency cuts paint use 40–60% and lowers VOC emissions. 5-axis servo, unmanned line-ready, adapted for Middle…
View machine →

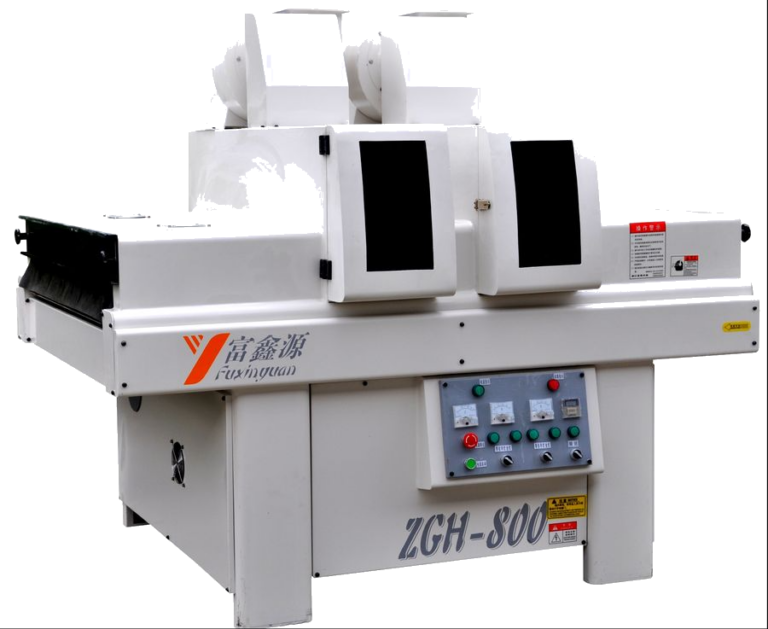

Standard drying equipment matched with roller coating, spraying, curtain coating and UV putty filling. Two independently-powered lamps enable single-lamp semi-drying pre-cure and double-lamp full…
View machine →

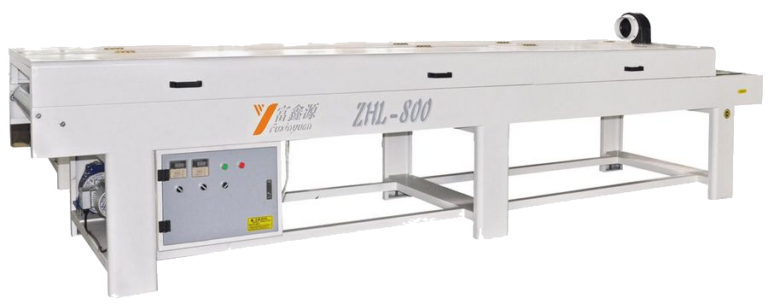

The first low-temperature pre-treatment tunnel after coating (≤80°C infrared constant-temp control). Self-levels the paint film and evaporates trace solvent/water vapor without full drying —…
View machine →

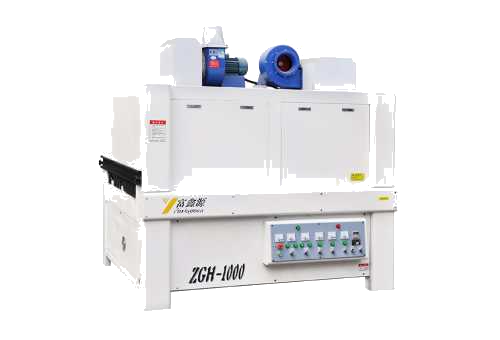

High-temperature pre-drying after the leveling tunnel (80–200°C). Dries inside and outside simultaneously for full surface drying — used for thick water-based coats, outdoor weather-resistant…
View machine →Production Line
Most buyers configure a full line. Here are working configurations already in production.

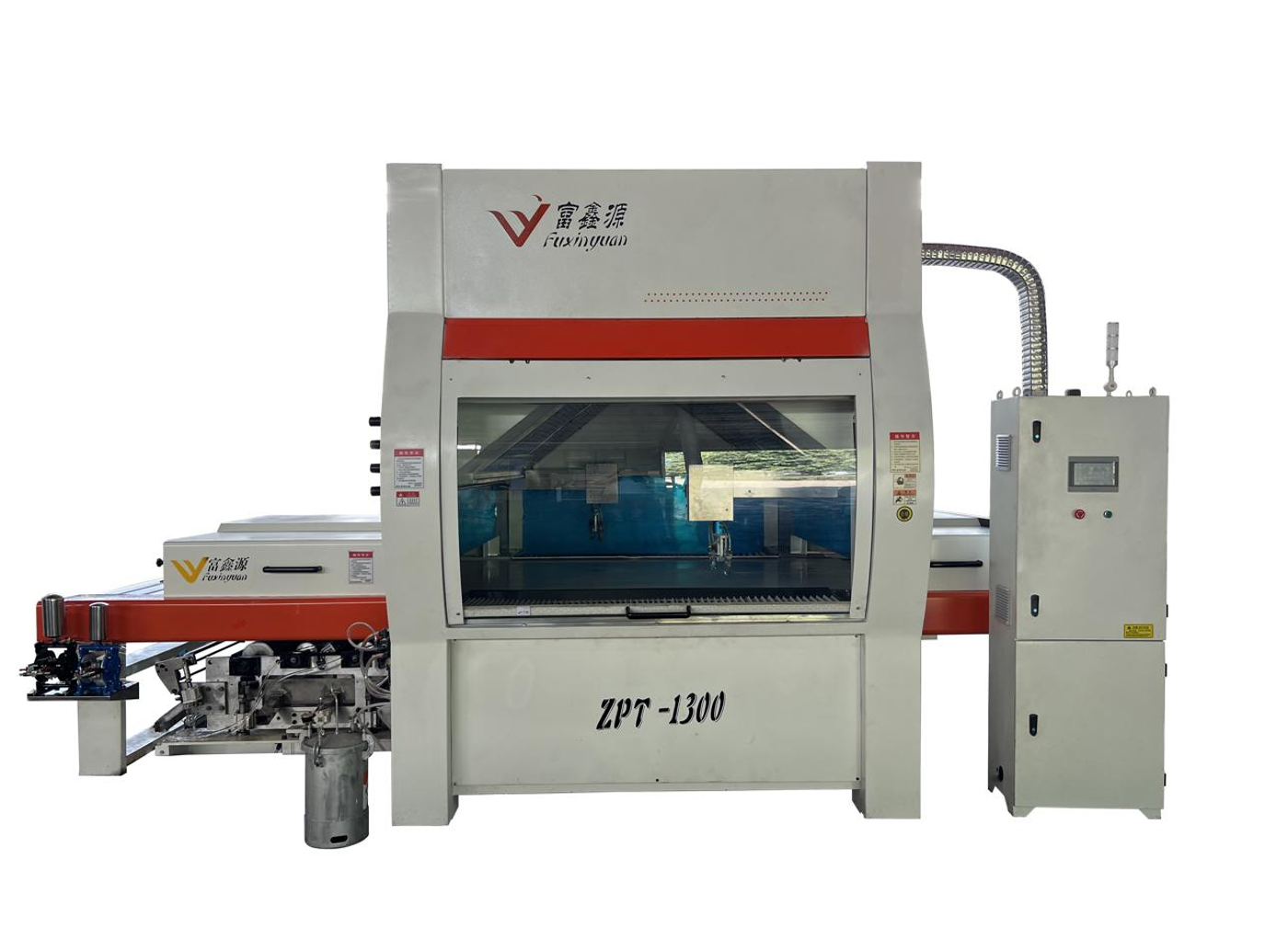

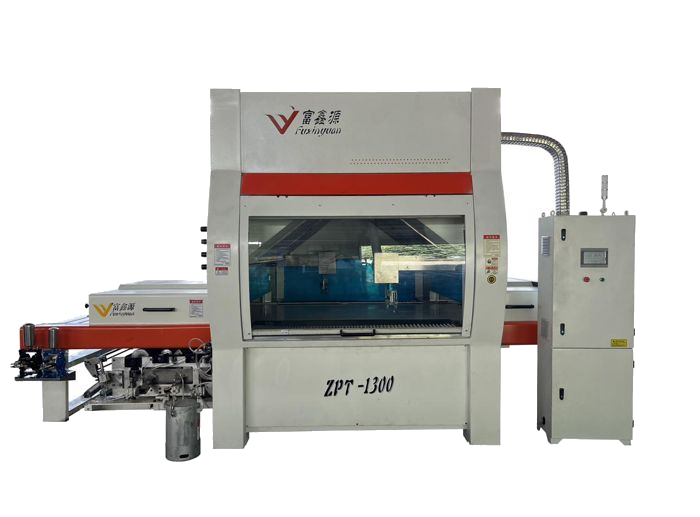

Enclosed, PLC-controlled spraying for workpieces a roller coater cannot reach — profiled doors, frames and assembled parts.

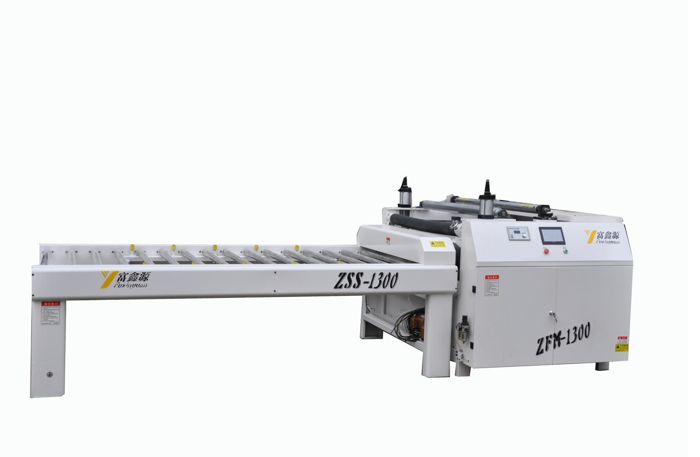

Film feeding, tension control, cold-press bonding, UV curing and automatic film cutting, built and commissioned at our Dujiangyan…

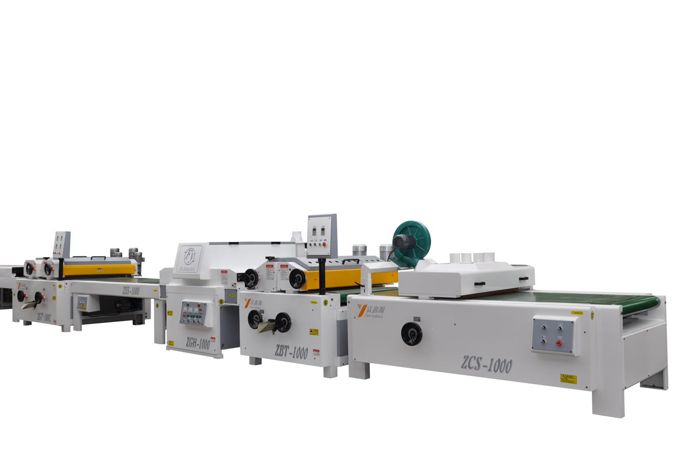

Sanding, roller coating, UV curing, putty fill and dust removal integrated on one conveyor, built and commissioned at…
About Fonsor Machine

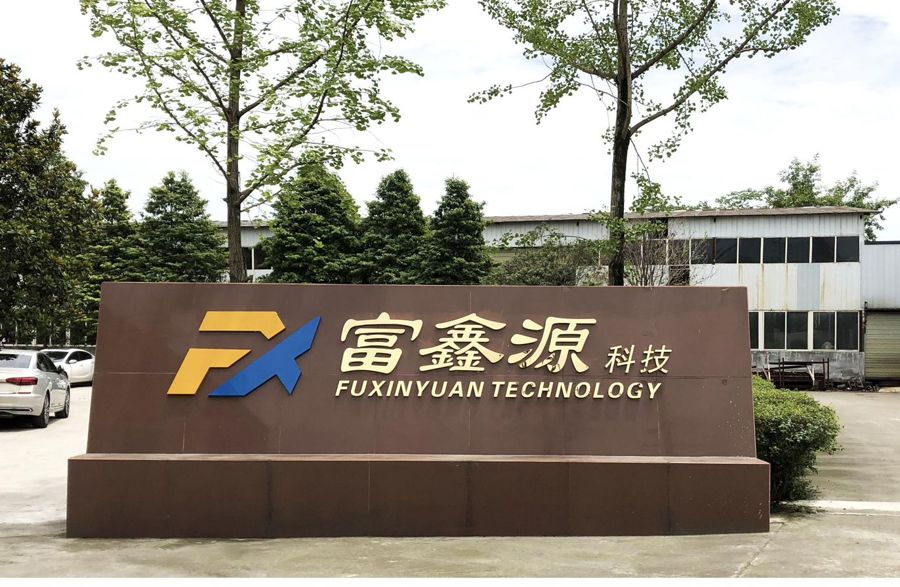

Fonsor Machine is the export brand of a coating equipment factory founded in 2003 in Dujiangyan, Chengdu, with a 20,000 m² plant and its own technical innovation and new-product R&D centers.
We build roller coaters, sprayers, UV curing machines, putty fillers, conveying and leveling equipment and film laminators for wood and panel, glass, building material and home decoration manufacturers. Machines already run in Southeast Asia, Russia, Western Europe, South America and the Middle East.
More about FonsorTell us your material, output target and budget — we'll propose the right machine or full line.
